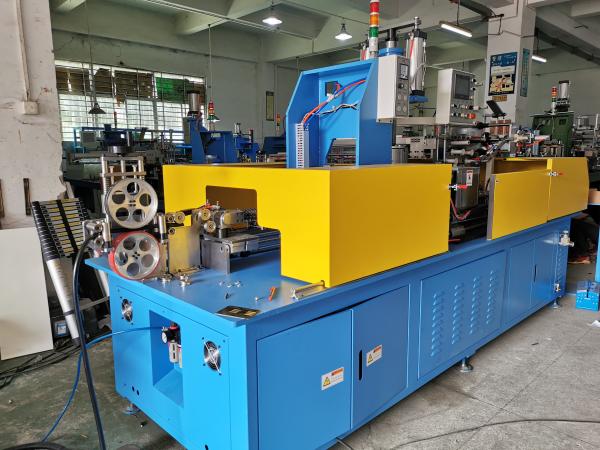

Fully Automatic Coiling and Wrapping Machine for Large Section Cable

Name: Fully Automatic Coiling and Wrapping Machine for Large Section Cable
Brand: HOOHA
Price: 55000 USD

Best Fully Automatic Coiling and Wrapping Machine for Large Section Cable wholesale

Brand Name : HOOHA

Model Number : HH-P-2480

Certification : CE/ISO

Place of Origin : Guangdong

MOQ : 1 set

Price : 55000-60000 USD

Supply Ability : 15 units/month

Delivery Time : 15 Working Days

Packaging Details : PE, wooden

Condition : All new

Color : As per customer request

Voltage : 380V 3 Phases or customized

Application : Coiling and Wrapping 2 in 1

Cable size : 5-25 mm

Cable type : BVV, BVR, RVV, RV Cable

Line speed : 5 - 6 seconds /coil

Coiling : Automatic

Wrapping : Automatic

Market : Asia, Africa, South America

Contact Now

Fully Automatic Coiling and Wrapping Machine for Large Section Cable

The automatic cable coiling and wrapping machine can be online / offline cable packaging. All conform to CE guidelines and have been designed using the latest technology and design criteria for industrial use. Realize full automation of automatic coiling, conveying and wrapping packing with PVC film.

1	Automatic packaging, wrapping and labeling
2	Packing label capacity 7 times more than manual
3	200m per coil and coiling speed 4 times more than manual
4	Can be directly connected to the extrusion machine
5	Servo motor flat cable system, perfect packing
6	Automatic warning system, easy control of the operation
7	99 types of the coiling storage and can change as you like

No.	Items	Quantity	Reference Picture
1	400-630 Magnetic Powder Type Payoff Stand	1 Set
2	Caterpillar traction machine	1 Set
3	Wire Straightening Device	1 Set
4	PLC Automatic 1246 Coiling And Wrapping Main Machine	1 Set

Main parameters:

1. PLC & HMI control program are used for automatic operation.
2. Parameters can be set on the control program with English.
3. Coiling OD cab be adjustable.
4. Cable cutting length can be adjusted as setting.
5. Two protective guards to fix and move the coiled cable.
6. Automatic error detection function, it will alarm when trouble occurs.
7. Detecting the cable position automatic by sensor.
8. Pressing device making the cable coil fixed and stable.
9. Tension control for avoiding deforming in coiling.
10. Tension control are included in the packing line.
11. It is necessary to replace different coil reels according to different inner diameter.

Coil size	ID: 140-200mm OD: 240-500mm Height : 60-150mm Weight: 50kg(max)
Single cable diameter	5-25mm
Coiling speed	2-2.5 coil/min
Air supply	10bar
Coil feed style mode	Hold coil type
Meter counter	0.01m-100m
Power voltage	AC 380V, 50HZ, 3 phase

1.Over 20-year experienced engineer team in field of cable and wire making machines to guarantee professional solution and first-rate quality products.

2.Our professional engineer team had over 5 years experience working overseas, will provide various technologies to support our customers, including overseas on-site installation guidance, talent training, long-term technological updating services,etc.

3.Adopting famous brand parts such as Siemens, Yaskawa, Omron, Emerson to ensure reliable using of our products.

4.We check every detail of the machines and do pre-production test before delivery to eusure products quality and performance.
