Network Cable Tandem Production Line / Drawing And Extrusion Tandem Line

Name: Network Cable Tandem Production Line Drawing And Extrusion Tandem Line
Brand: HOOHA
Price: 264600 USD

Best Network Cable Tandem Production Line / Drawing And Extrusion Tandem Line wholesale

Brand Name : HOOHA

Model Number : HH

Certification : CE

Place of Origin : Guangdong

MOQ : 1 set

Price : US＄264600/1set

Payment Terms : D/A, D/P, T/T, MoneyGram

Supply Ability : 15set/1 month

Delivery Time : 90 Working Days

Packaging Details : PE film wrapped, wood frame packed as customer requiry

Usage : Insulation

Transport Package : Wood Package

Voltage : 380V 50HZ

Power : AC220V 50HZ

Warranty : 1 year for free

After-sales service : Online Service

Condition : New

Driven Type : Electric driving

Insulation Structure : Single Layer

Applicable material : PVC/PE/PBT/PA/PUR/LSZH

Small Box Inside a Carton : 84772090

Scope of Use : Network Cable

Contact Now

Product Description

Network Cable Tandem Production Line / Drawing And Extrusion Tandem Line


(1)Application:
 Suitable for the extrusion of PVC, PP, PE, XLPE,HFFR, material, It's used for the solid wire (0.22-4mm) and stranded wire
 (0.5-2.5mm),mainly applied in building wire, electronic wire, etc.

 - Line axis height: 1000mm
 - Machine color: Based on customer's requirement
 - Machine direction: Based on customer's requirement
 - Power: 3P/ 400V / 50Hz( based on customer's requirement )(2)Features:
 - BIG CAPACITY
 - Max.Speed:1500M/S
 - Color stripping and layer extruded together
 - European crosshead, concentricity guaranteed
 - Equipped with sealed circulation control system
 - Auto-adjust insulation thickness.
 - Dual flyer pay off, non-stop
 - CNC software+IPC,PLC control
 - Optional: fast color change system

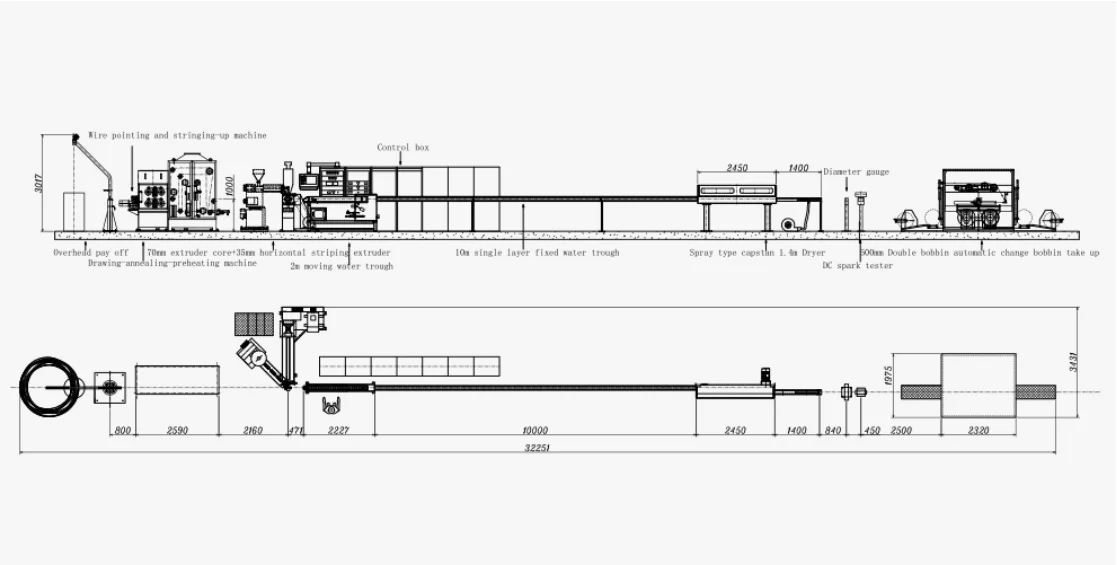

(3)Layout:

Line components:
Description	Quantity	Note
Pay Off	1
Drawing Machine	1
Annealer	1
65MM Extruder	1
35MM Co- Extruder	1
Double Layer Crosshead	1
Moveable trough	1
Single Layer Cooling Trough	1	4m
Cooling Capstan	1
Meter Counter	1
Pneumatic Tension Accumulator	1	High speed Dual wheel
500mm/SEMI-automatic Dual Shaft Take Up	1	15KV
Main Electric Control Box	1	Wheel type
Control box	PLC + touch screen; Master control possible;

Network Cable Tandem Production Line / Drawing And Extrusion Tandem Line

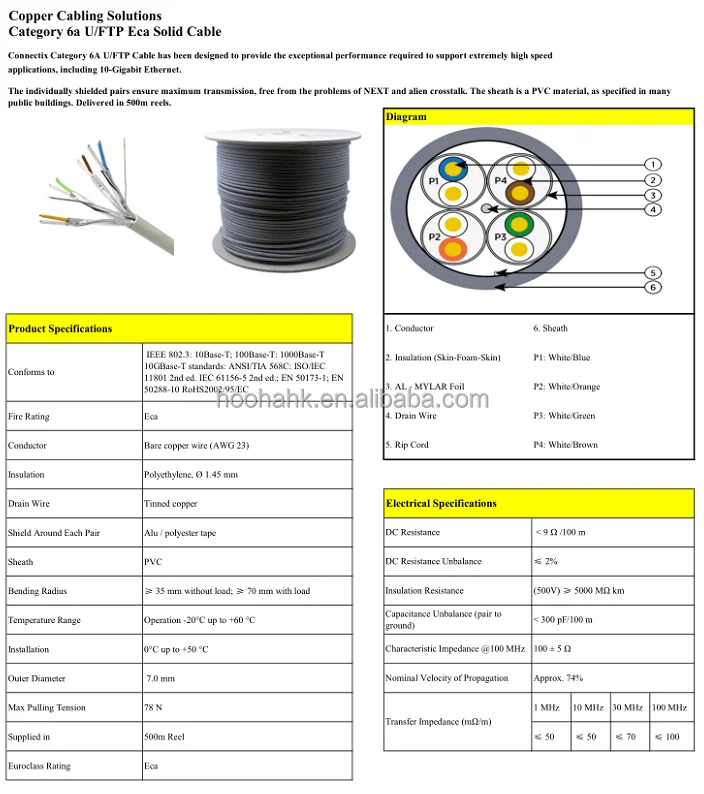

The wire samples
